Canyon Ridge Louver

Canyon Ridge^® Louver

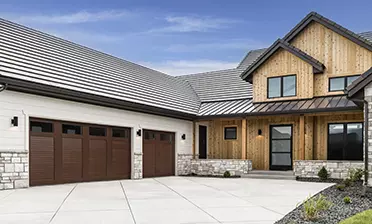

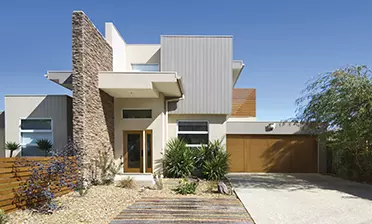

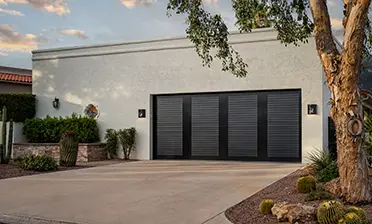

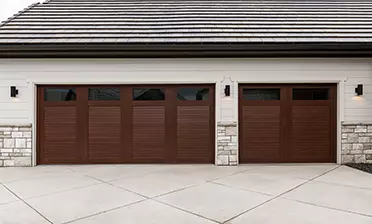

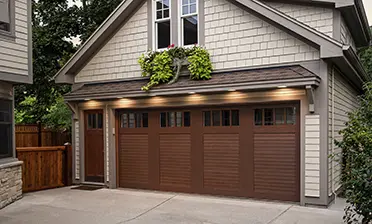

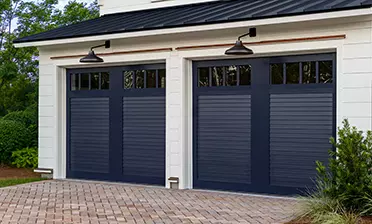

Versatile and unique, plantation style Louver doors perfectly complement coastal cottages and colonial homes. They can also be a standout piece on traditional exteriors or modern farmhouses. Whatever your style, these doors add “wow” factor to your home.

5-layer construction

Steel + insulation + steel + composite cladding + composite overlay.

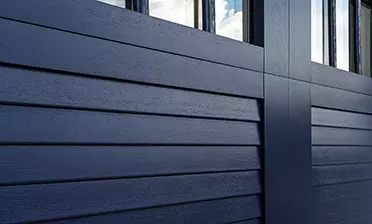

Faux wood-look composite

Faux wood composite cladding and overlay materials are molded from real wood pieces to reproduce the natural texture and grain patterns of the species they emulate. Choose from Clear Cypress or Mahogany in a variety of paint and stain colors to create your door.

Design Customization

Twelve door designs with optional windows and decorative hardware. Available primed, painted or stained in eight standard finishes. ColorBlast® custom paint colors also offered in 1,500 shades.

Insulation

2"-thick Intellicore® polyurethane foam insulation with a thermal break. R-values range from 18.4 – 20.4 depending on the design.

Door Reinforcement

WindCode^® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

California SB 1013
Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Canyon Ridge^® Louver

Canyon Ridge® Louver garage doors are built with a durable steel base door topped with low-maintenance, moisture-resistant composite overlays that won't rot, warp or crack.

Composite Overlay
Composite Cladding
Steel
2" Intellicore® Polyurethane Insulation
Steel

Intellicore^®Insulation

Warmer. Quieter. Stronger.
Garage doors featuring Intellicore insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.

Additional Features

Rust-Prevention System: Steel skins are protected with a tough, multi-layer coating system, including hot-dipped galvanizing, a protective metal oxide pretreatment, then a baked-on primer and top coat.
Replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep out air and water.
A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension
All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)
Window grilles are removable for easy cleaning.

DOOR DESIGNS

Series 5
